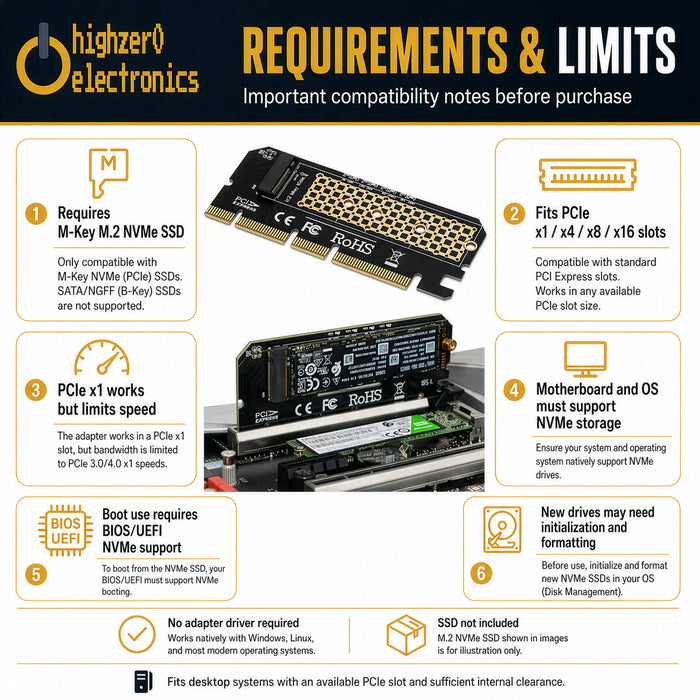

- SYSTEM REQUIREMENTS: No adapter driver required. Motherboard and operating system must support PCIe NVMe storage. Boot use requires BIOS or UEFI support for NVMe boot and may vary on older PCs
- NVME ONLY COMPATIBILITY: Designed for M-Key M.2 NVMe SSDs only; not intended for SATA M.2 SSDs, B-Key SSDs, B+M SATA SSDs, mSATA drives, U.2 drives, or M.2 Wi-Fi cards
- FITS PCIE SLOT SIZES: Fits PCIe x1, x4, x8, and x16 slots in desktop systems with sufficient clearance; use PCIe x4 or larger for full Gen3 x4 card bandwidth because x1 slots limit speed
- INSTALLATION HARDWARE INCLUDED: Includes two heat dissipating pads, one standoff spacer, one SSD mounting screw, and screwdriver; SSD, brackets, separate heatsink, and cables are not included
- SYSTEM REQUIREMENTS: No adapter driver required; motherboard and operating system must support PCIe NVMe storage; boot use requires BIOS or UEFI support for NVMe boot and may vary on older PCs

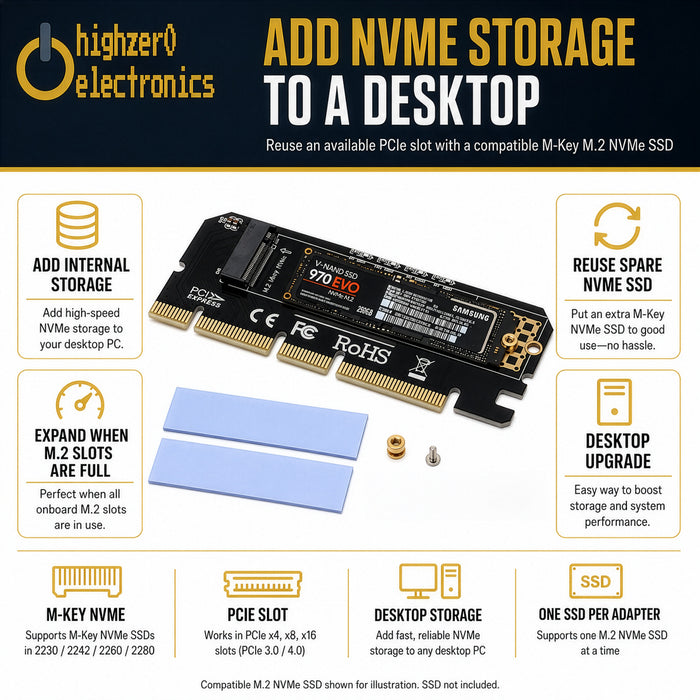

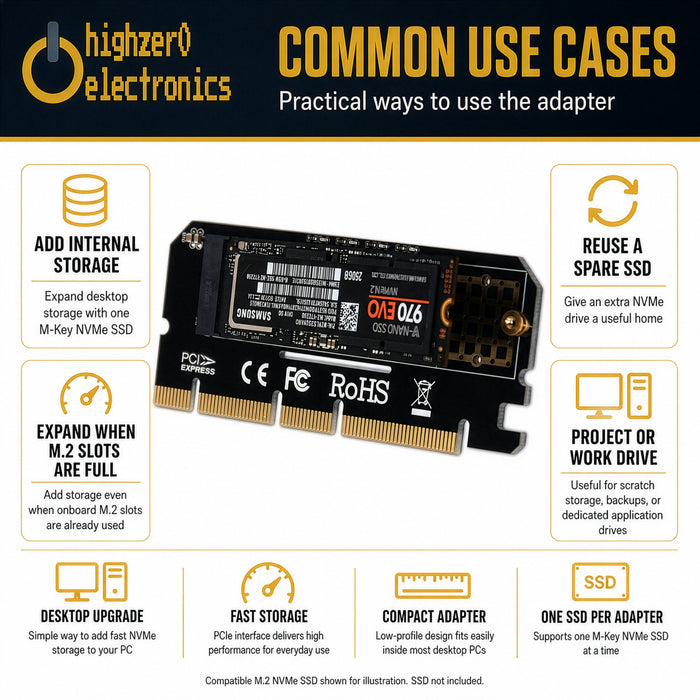

M.2 NVMe SSD to PCIe Adapter: Add one M-Key M.2 NVMe SSD to a desktop PCIe expansion slot for internal storage expansion, spare NVMe drive reuse, or added capacity when onboard M.2 slots are full

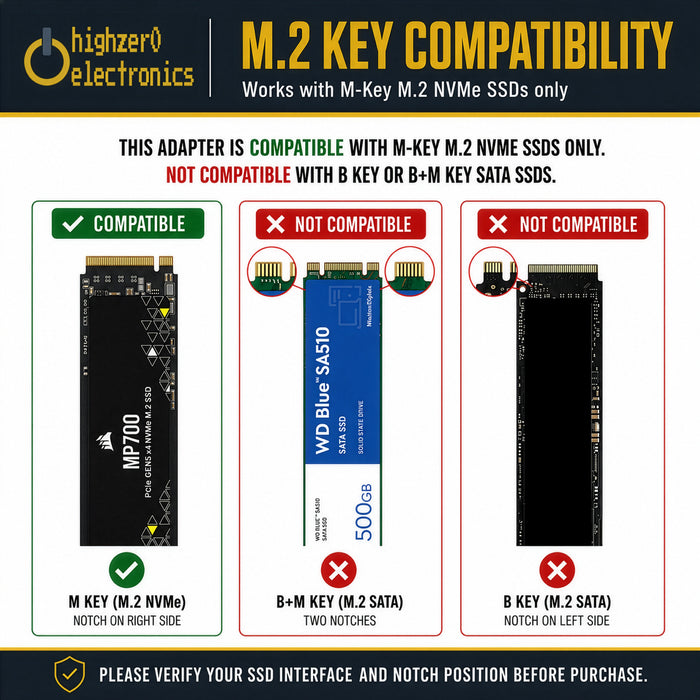

Compatibility first: Intended for M-Key M.2 NVMe protocol SSDs only. Not intended for SATA M.2 SSDs, B-Key SSDs, B+M SATA SSDs, mSATA drives, U.2 drives, USB use, enclosures, RAID cards, bifurcation adapters, or M.2 Wi-Fi cards
PCIe slot fit: Fits PCIe x1, x4, x8, and x16 slots in desktop systems with sufficient clearance. The card uses a PCIe Gen3 x4 NVMe interface; PCIe x1 works but card limits apply because x1 slots reduce bandwidth

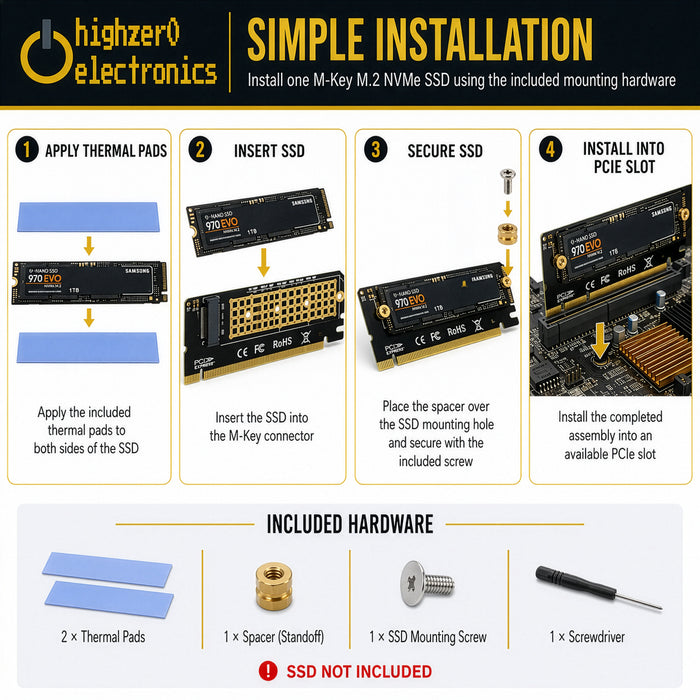

Installation order: Apply the two included heat dissipating pads to both sides of the SSD. Insert the SSD into the adapter with the standoff spacer between the SSD and adapter. Insert the screw through the SSD and spacer into the adapter. Install the assembled adapter into an available PCIe slot
After installation: New SSDs may need to be initialized, formatted, and assigned a drive letter in Disk Management before appearing as a usable drive. Boot drive use requires motherboard BIOS or UEFI support for PCIe NVMe boot

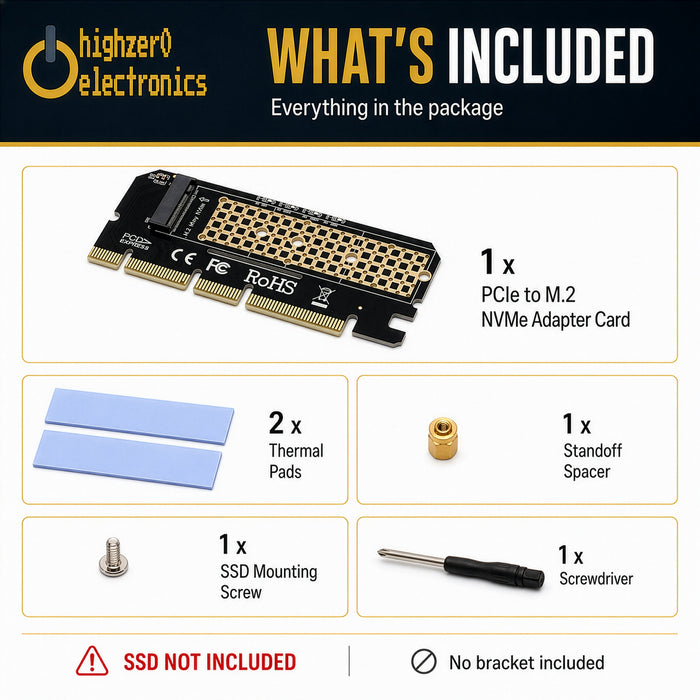

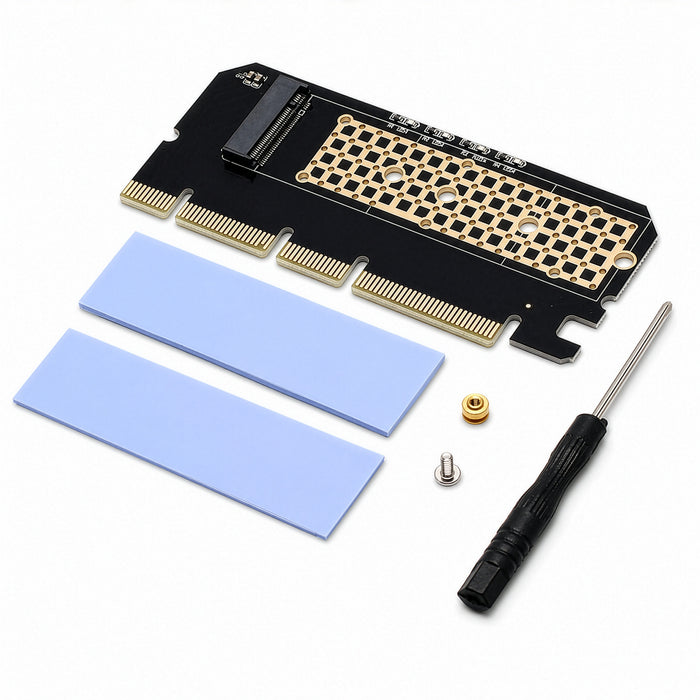

What's included:
1 x PCIe to M.2 NVMe SSD Adapter Card
2 x Heat Dissipating Pads
1 x SSD Standoff Spacer
1 x SSD Mounting Screw
1 x Screwdriver
SSD, LOW-PROFILE BRACKET, SEPARATE HEATSINK, PCIE RISER CABLE, SATA M.2 SSD, AND EXTERNAL CABLES ARE NOT INCLUDED

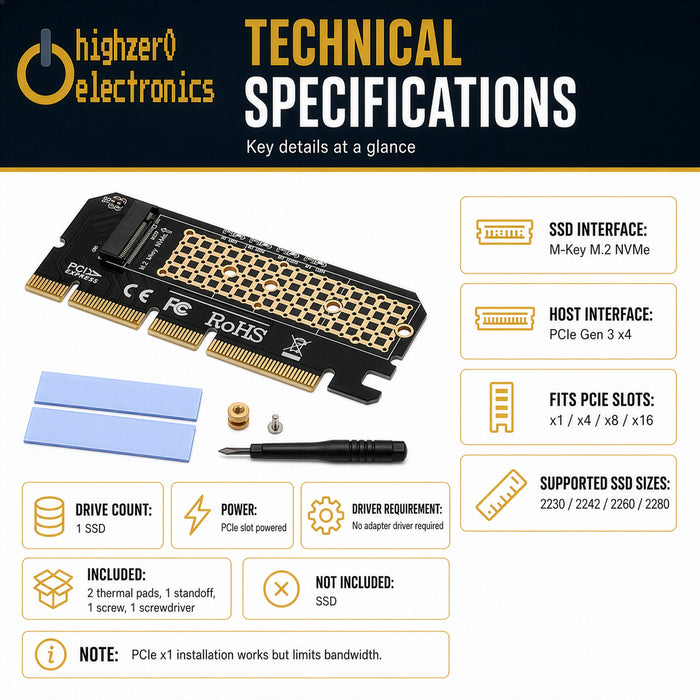

Technical specs:
SSD Interface: M-Key M.2 NVMe
Host Interface: PCIe Gen3 x4, fits x1/x4/x8/x16 slots
SSD Lengths: 2230, 2242, 2260, 2280
Drive Count: One M.2 NVMe SSD
Power: PCIe slot powered
Driver: No adapter driver required
OS Support: Windows 10/11 and Linux systems with PCIe NVMe support; Windows 7/8 may require NVMe driver support
