- M.2 WIFI CARD CONVERTER: Convert a Mini PCIe WLAN slot to accept compatible M.2 NGFF Key E or Key A+E 2230 WiFi and Bluetooth cards for older laptops, mini PCs, embedded systems, and repair projects
- KEY E AND A+E SUPPORT: Works with compatible PCIe/USB-based M.2 2230 wireless cards, including models compatible with Intel AX210, AX200, 9260, 8265, 8260, BE200, and future Key E WiFi cards
- IMPORTANT CARD LIMITS: Not compatible with CNVio or CNVio2 cards, including models compatible with Intel 9461, 9462, 9560, AX201, AX203, AX211, AX411, or Killer 1550; not for SSD, NVMe, SATA, WWAN, or cellular modules
- INSTALLATION READY: Includes adapter board, 1 screw for securing the M.2 card, and 4 screws for securing the Mini PCIe adapter to the motherboard or system. Antennas, antenna adapter cables, and screwdriver are not included
- NO ADAPTER DRIVER NEEDED: Adapter is OS-transparent for Windows, Linux, and macOS; install the WiFi and Bluetooth drivers for the wireless card used. Bluetooth requires USB support from the Mini PCIe host slot
Upgrade a Mini PCIe WLAN Slot for Modern M.2 WiFi Cards
Convert an existing Mini PCIe wireless card slot into an M.2 NGFF Key E / Key A+E interface and install a compatible M.2 2230 WiFi and Bluetooth card. Ideal for upgrading older laptops, mini PCs, embedded computers, industrial systems, and repair projects without replacing the motherboard.
Supports Key E and Key A+E Wireless Cards
Designed for compatible PCIe and USB based M.2 2230 wireless cards, including models compatible with Intel AX210, AX200, 9260, 8265, 8260, BE200, and many other Key E wireless adapters. The adapter routes PCIe signals for WiFi and USB signals for Bluetooth, allowing modern wireless cards to operate in systems equipped with a Mini PCIe WLAN slot.
Important Compatibility Information
This adapter supports standard PCIe/USB wireless cards only. It is not compatible with CNVio or CNVio2 wireless cards, including Intel 9461, 9462, 9560, AX201, AX203, AX211, AX411, and Killer 1550. It is also not compatible with SSDs, NVMe drives, SATA drives, WWAN modules, LTE modules, 3G modules, 4G modules, or 5G cellular devices. Some manufacturers may implement BIOS whitelist restrictions that prevent unsupported wireless cards from operating.
Simple Installation
Install a compatible M.2 2230 wireless card into the adapter, secure it using the included mounting screw, then install the adapter into the Mini PCIe slot and connect the antenna leads. The adapter itself requires no drivers. Install the appropriate WiFi and Bluetooth drivers for the wireless card being used. Bluetooth functionality requires USB support from the host Mini PCIe slot.
Technical Details
Supports M.2 2230 Key E and Key A+E wireless cards. Approximate dimensions are 51mm x 30mm x 5mm. Approximate weight is 4g. Features onboard WiFi and Bluetooth activity LEDs. No external power connection required. Compatible with Windows, Linux, and macOS environments because the adapter operates as a transparent hardware interface.
What's Included

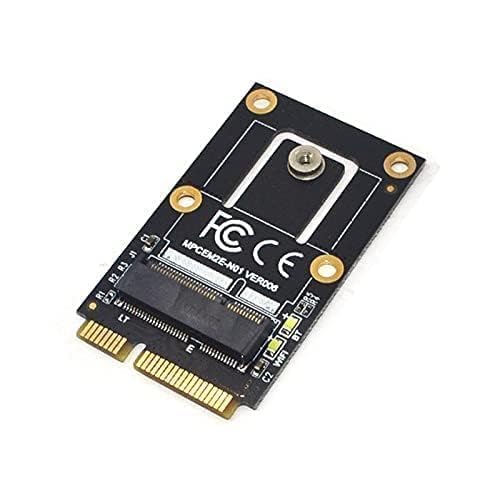

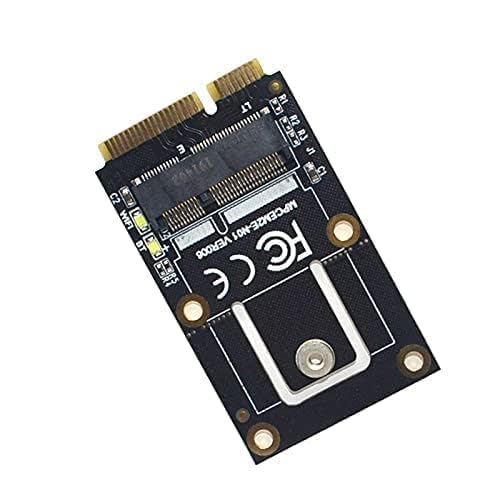

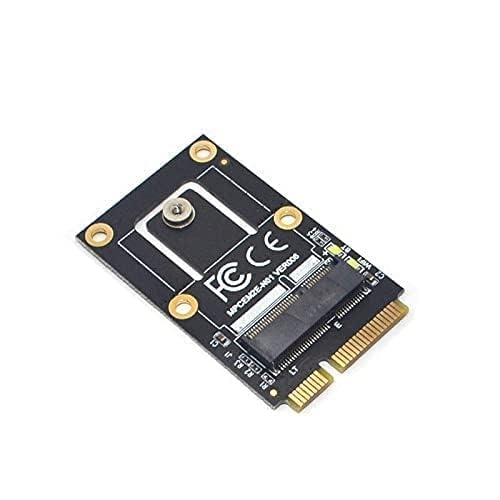

1 x Mini PCIe to M.2 Key E / Key A+E Adapter
1 x M.2 Wireless Card Mounting Screw
4 x Adapter Mounting Screws
M.2 WIFI CARD, ANTENNAS, ANTENNA ADAPTER CABLES, SCREWDRIVER, SSDs, AND CELLULAR MODULES ARE NOT INCLUDED
