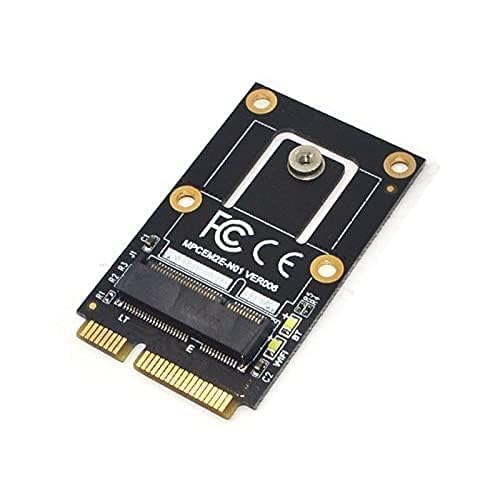

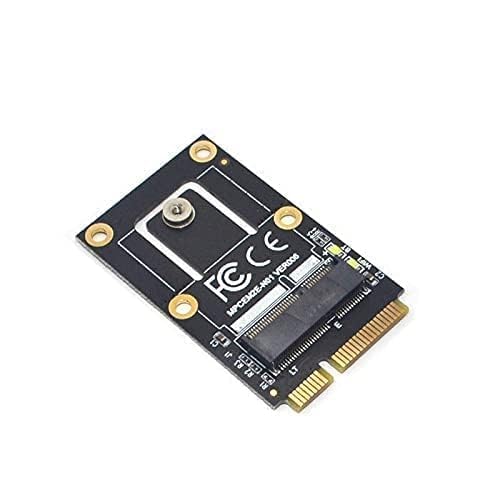

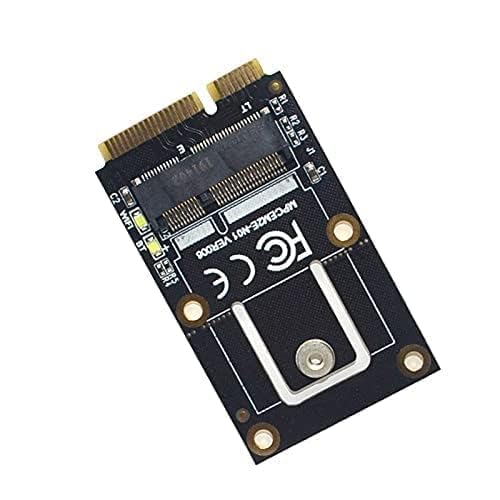

- M.2 WIFI CARD CONVERTER: Convert a Mini PCIe WLAN slot to accept compatible M.2 NGFF Key E or Key A+E 2230 WiFi and BT cards for older laptops, mini PCs, embedded systems, and repair projects
- KEY E AND A+E SUPPORT: Works with compatible PCIe-based M.2 2230 wireless cards, including models with Intel AX210, AX200, 9260, 8265, 8260, BE200, and future Key E or A+E WiFi cards
- IMPORTANT CARD LIMITS: Not intended for CNVio or CNVio2 cards, including models with Intel 9461, 9462, 9560, AX201, AX203, AX211, AX411, or Killer 1550; not for SSD, NVMe, SATA, WWAN, or cellular modules
- PASSIVE SIGNAL ADAPTER: Adapter does not add, create, or convert USB signaling. BT depends on USB signaling already provided by the motherboard or system; if USB is not present, BT may not function
- INSTALLATION READY: Includes adapter board, 1 screw for securing the M.2 card, and 4 screws for securing the Mini PCIe adapter to the motherboard or system. WiFi card, antennas, antenna adapter cables, and screwdriver are not included
Convert a Mini PCIe WLAN Slot for Modern M.2 Wireless Cards: This adapter allows a compatible M.2 NGFF Key E or Key A+E wireless card to be installed into an existing Mini PCIe WLAN slot. It is intended for laptop repairs, wireless upgrades, embedded systems, industrial computers, mini PCs, and projects where a newer wireless card is desired without replacing the motherboard
Supports Compatible M.2 Key E and Key A+E Wireless Cards: Designed for compatible PCIe-based M.2 2230 wireless cards, including models compatible with Intel AX210, AX200, 9260, 8265, 8260, BE200, and many other Key E wireless adapters. The adapter itself requires no drivers and operates as a transparent hardware interface between the host Mini PCIe slot and installed wireless card
Passive Adapter Design: This product does not contain an onboard wireless chipset and does not modify or convert wireless signals. Available host signals are passed through to the installed wireless card. The adapter does not create, add, or convert USB signaling. Bluetooth functionality depends on USB support already present in the Mini PCIe slot and motherboard design. If the host system does not provide USB signaling, Bluetooth may not function even if WiFi operates normally
Important Card Limits: Not intended for CNVio or CNVio2 cards, including models with Intel 9461, 9462, 9560, AX201, AX203, AX211, AX411, or Killer 1550. Not intended for SSD, NVMe, SATA, WWAN, LTE, 3G, 4G, 5G, or other cellular communication modules. Physical fit alone does not guarantee electrical compatibility. OEM BIOS restrictions may also affect compatibility depending on the system manufacturer
Technical Specifications
Interface: Mini PCIe Host to M.2 NGFF Key E / A+E
Supported Card Size: M.2 2230
Approximate Dimensions: 51 x 30 x 5 mm
Approximate Weight: 4 g
What's Included
1 x Mini PCIe to M.2 Key E / A+E Adapter
1 x M.2 Card Mounting Screw
4 x Adapter Mounting Screws
M.2 WIFI CARD, ANTENNAS, ANTENNA ADAPTER CABLES, SCREWDRIVER, ETC ARE NOT INCLUDED
