- Upgrade desktop PCs using compatible M.2 NGFF Key E, Key A, and A+E wireless cards. Convert notebook style WiFi and Bluetooth modules into a PCI Express desktop solution for home, office, workstation, and lab systems
- Compatible with many M.2 NGFF wireless cards including Intel AX200, AX210, BE200, 9260, 8265, 8260, 7265, Broadcom BCM94350ZAE, Killer 1535, and Qualcomm Atheros QCNFA344 wireless adapters
- Supports PCIe x1 installation and fits PCIe x4, x8, and x16 slots. Compact low profile design is ideal for desktop computers, embedded systems, industrial PCs, test benches, and custom computer projects
- Includes USB header cable required for Bluetooth functionality. WiFi communicates through PCIe while Bluetooth uses the motherboard USB connection for proper operation and wireless device support
- Not compatible with M.2 SSDs, Mini PCIe cards, Intel CNVio, or Intel CNVio2 wireless cards including AX201, AX211, AX411, BE201, AX1650i, AX1675i, and similar proprietary interface models

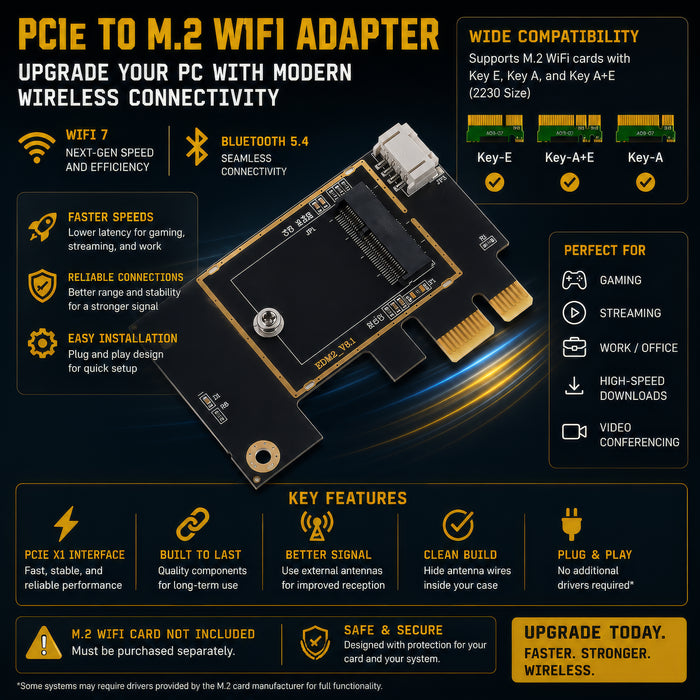

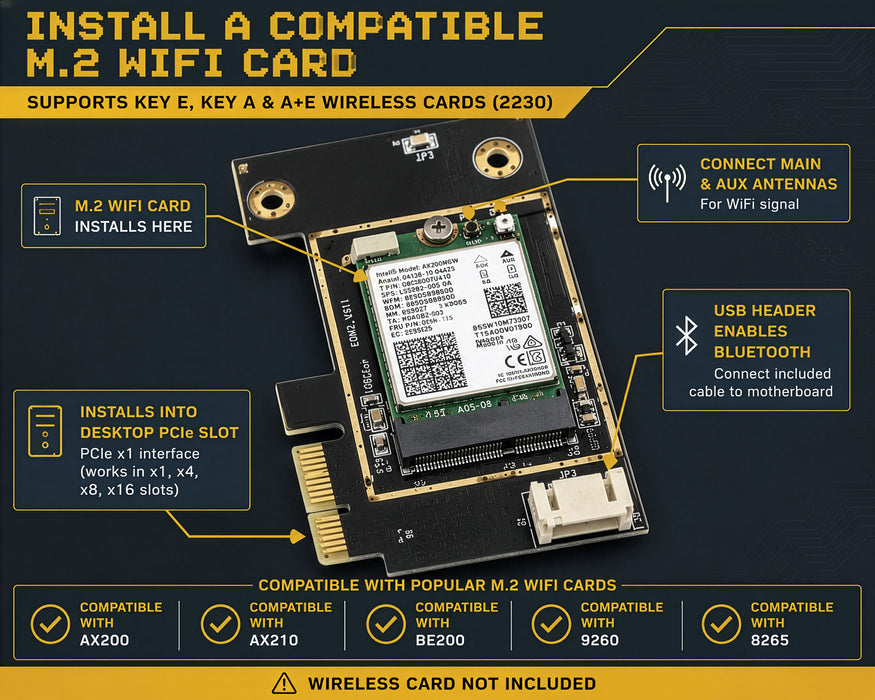

Install compatible M.2 wireless cards into a desktop computer with this M.2 NGFF WiFi Card to PCIe Adapter. Designed for desktop upgrades, workstation builds, embedded systems, industrial computers, and test environments, this adapter converts supported M.2 Key E, Key A, and A+E wireless modules into a PCI Express solution.

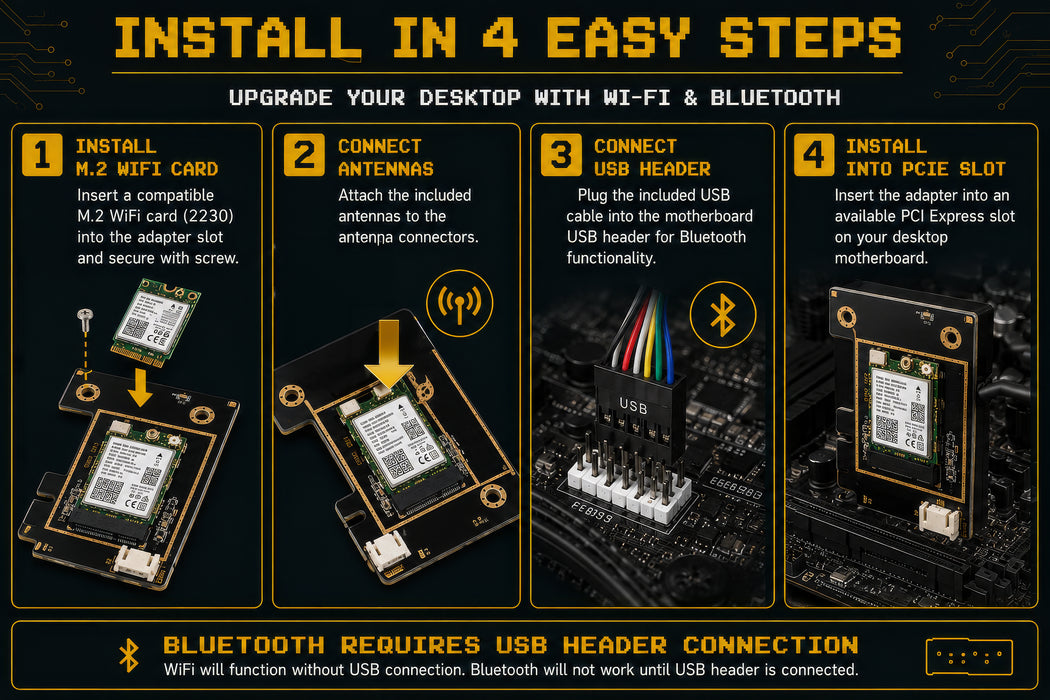

Desktop Wireless Upgrade Solution: This adapter allows many notebook style WiFi and Bluetooth cards to be used in desktop computers. Simply install a compatible wireless card, connect the included USB header cable for Bluetooth support, install the adapter into an available PCIe slot, and install the required drivers for your wireless card.
Technical Specifications:

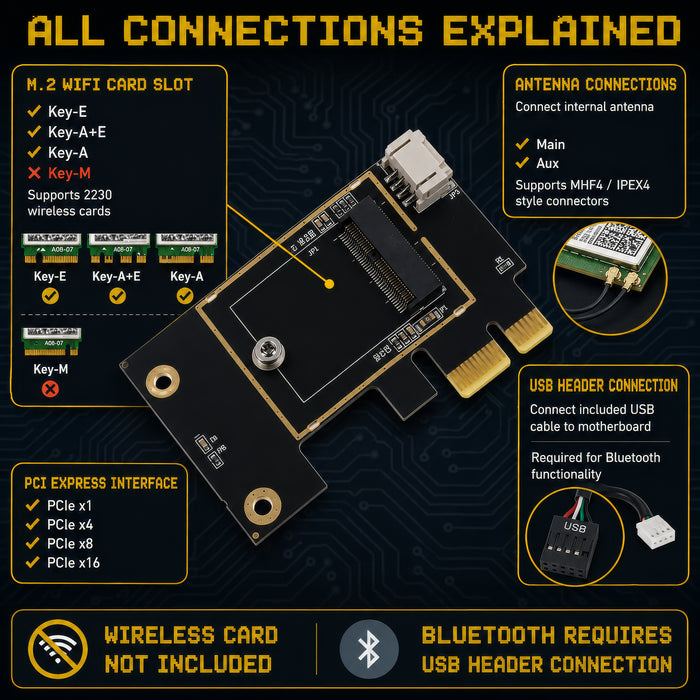

PCI Express x1 interface
Compatible with PCIe x1, x4, x8, and x16 slots
Internal USB header interface for Bluetooth functionality

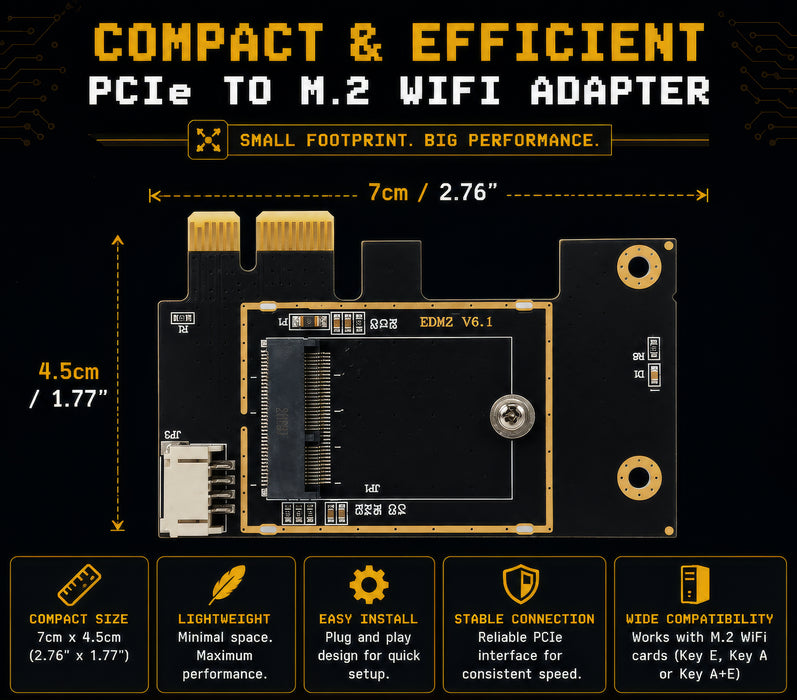

Approximate board size: 70mm x 45mm
Low profile PCB construction
Bluetooth Functionality: The included USB header cable is required for Bluetooth operation. WiFi communication uses the PCIe interface while Bluetooth communication uses the motherboard USB header connection. If the USB cable is not connected, Bluetooth functionality may not be available.

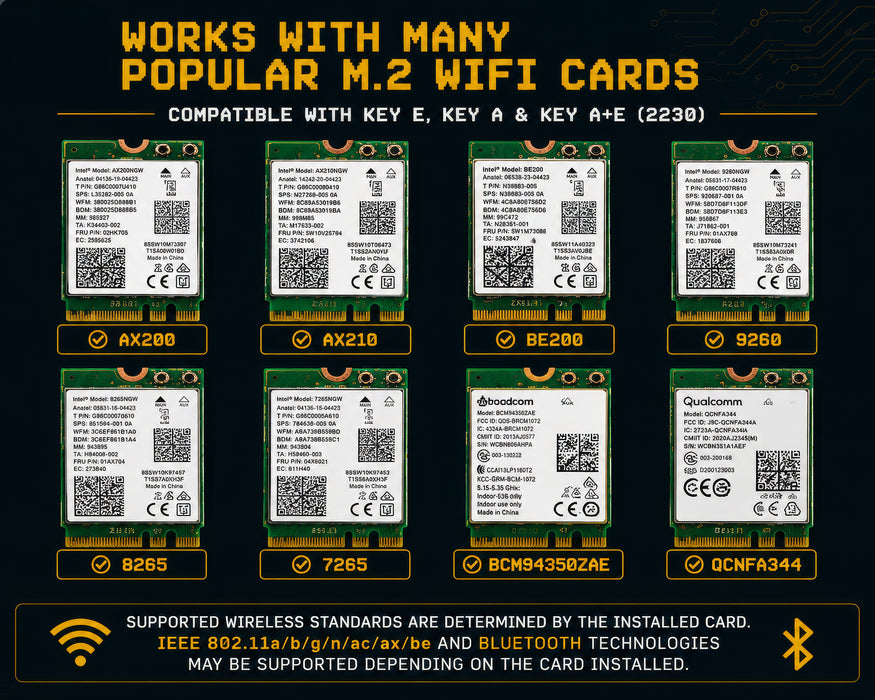

Wireless Card Compatibility: Designed for use with many wireless cards including models compatible with Intel AX200, AX210, BE200, 9260, 8265, 8260, 7265, compatible with Broadcom BCM94350ZAE and Qualcomm Atheros QCNFA344, and similar PCIe based wireless modules.

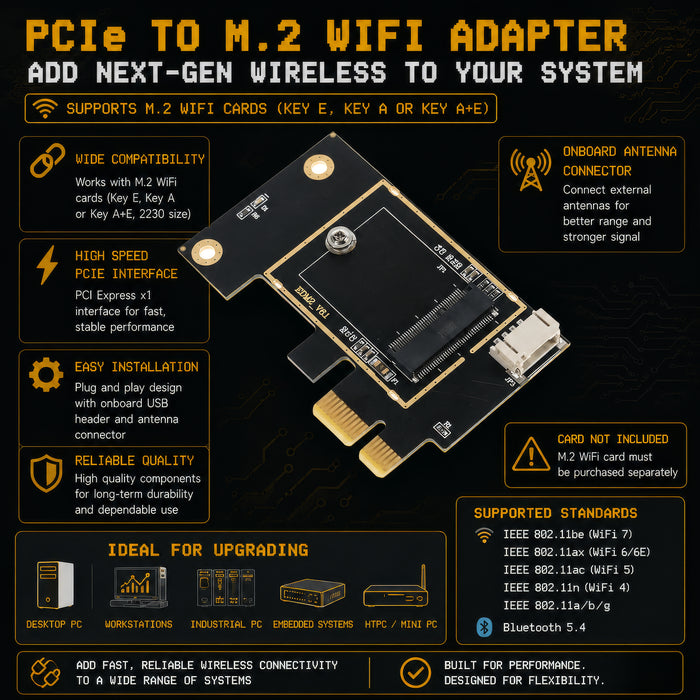

Supported Wireless Standards: Supports wireless standards provided by the installed wireless card, including IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, IEEE 802.11be, and Bluetooth technologies depending on the wireless module installed.
Important Compatibility Information: Not compatible with M.2 NVMe SSDs / M.2 SATA SSDs / Mini PCIe wireless cards / or Intel CNVio or Intel CNVio2 wireless cards

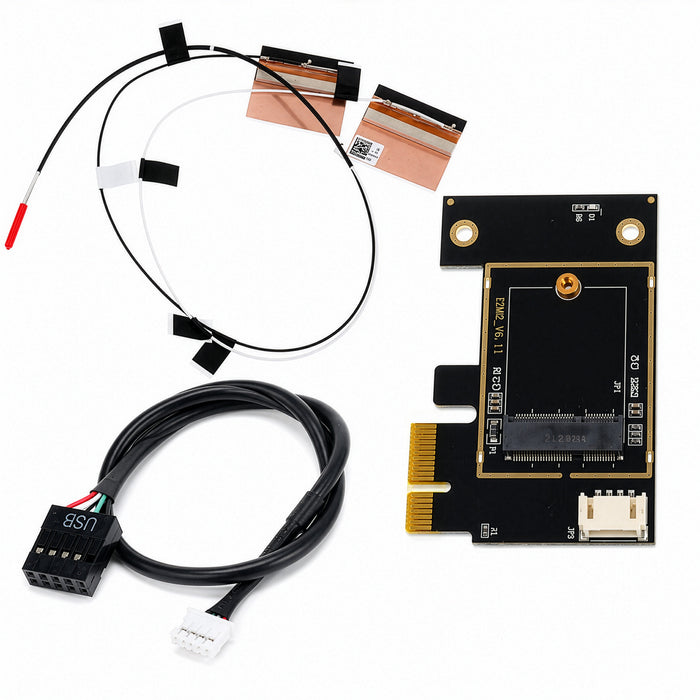

Package Includes:
1 x PCIe adapter board
1 x USB header cable
2 x internal antennas
WIRELESS CARD & MOUNTING BRACKETS NOT INCLUDED
