Wi-Fi 6E Card for Intel AX210 | M.2 2230 PCIe/USB | 2.4 Gbps | No vPro

Save 22% Save 22%
Original price $29.69
Original price $29.69 - Original price $29.69
Original price $29.69
Current price $23.20
$23.20 - $23.20
Current price $23.20
Availability:
in stock, ready to be shipped

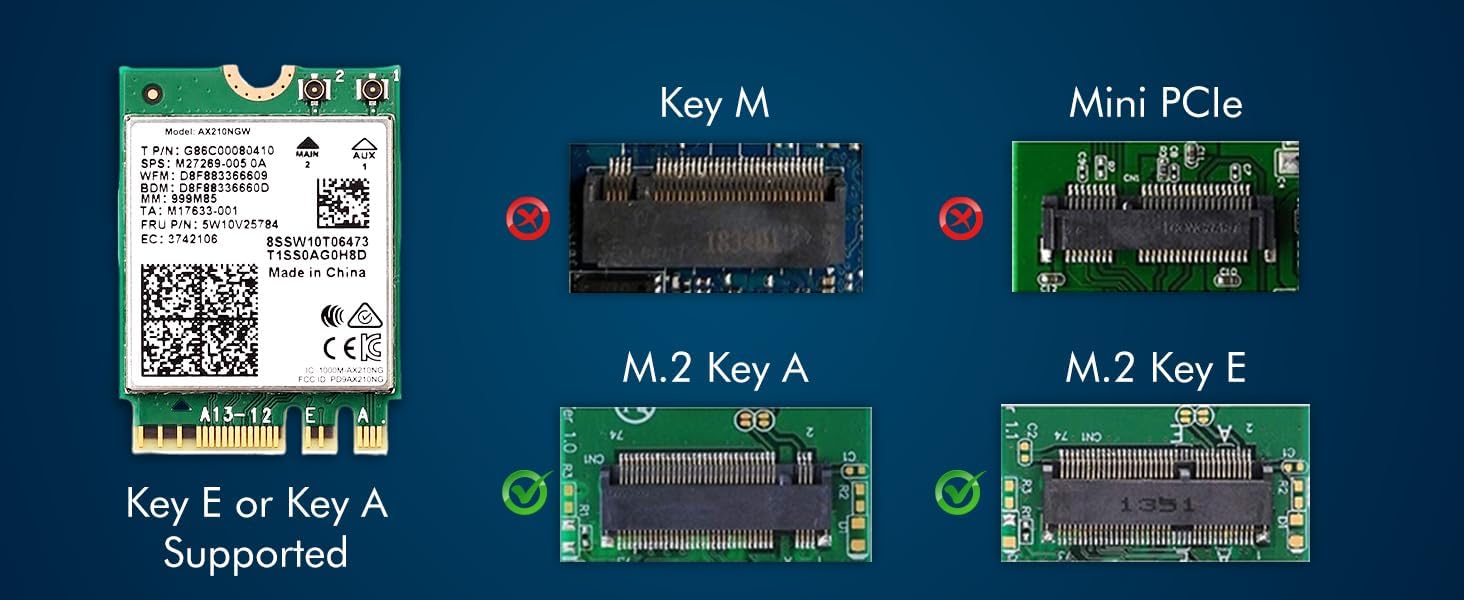

  • CHECK YOUR WIRELESS SOCKET: For Intel AX210 module replacement or an approved upgrade, confirm an M.2 2230 Key A or E socket, PCIe Wi-Fi, USB Bluetooth, matching antenna leads and motherboard/BIOS support
  • NETWORK CAPABILITY: The module supports Wi-Fi 4, 5, 6 and 6E, with 2x2 streams and up to 160 MHz channels. The 2.4 Gbps maximum link rate depends on the access point and connection conditions; it is not a broadband guarantee
  • PLAN FOR 6 GHz: On Windows, this band requires Windows 11, current drivers, a Wi-Fi 6E or newer access point and country/OEM approval. Windows 10 64-bit uses the other bands; Linux needs suitable kernel and firmware support
  • PERIPHERAL CONNECTIVITY: Supports Bluetooth 5.4 through the host USB connection, with features dependent on OS, drivers and peer devices. Wi-Fi supports MU-MIMO, OFDMA and WPA3. Supplied wireless-card version is No vPro
  • BARE-CARD PACKAGE: Includes one network module, without antennas, screw or desktop kit. For a desktop PCIe slot, add an M.2-to-PCIe adapter with antennas and connect its USB cable to a motherboard USB header for Bluetooth

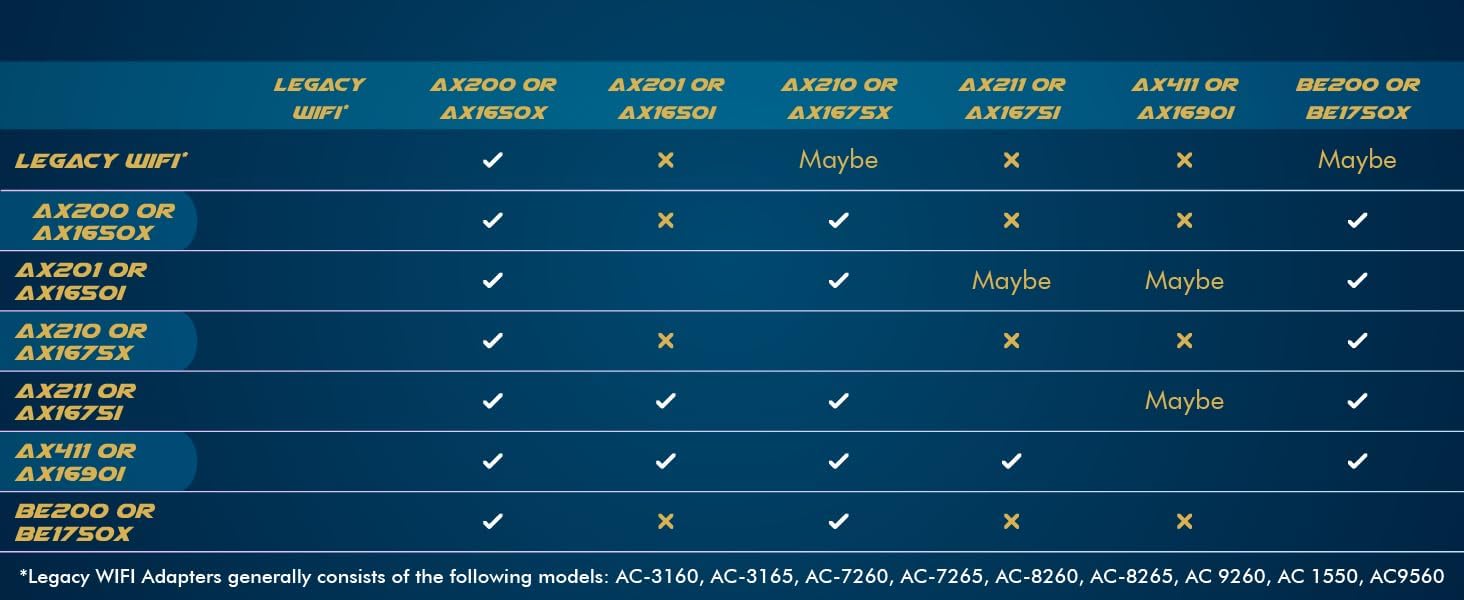

Before ordering: For an Intel AX210 replacement or approved wireless upgrade, verify an M.2 2230 Key A or E socket with PCIe Wi-Fi and USB Bluetooth. Compare the installed module, antenna leads and OEM-approved parts list. Physical fit alone does not establish motherboard/BIOS or driver support.

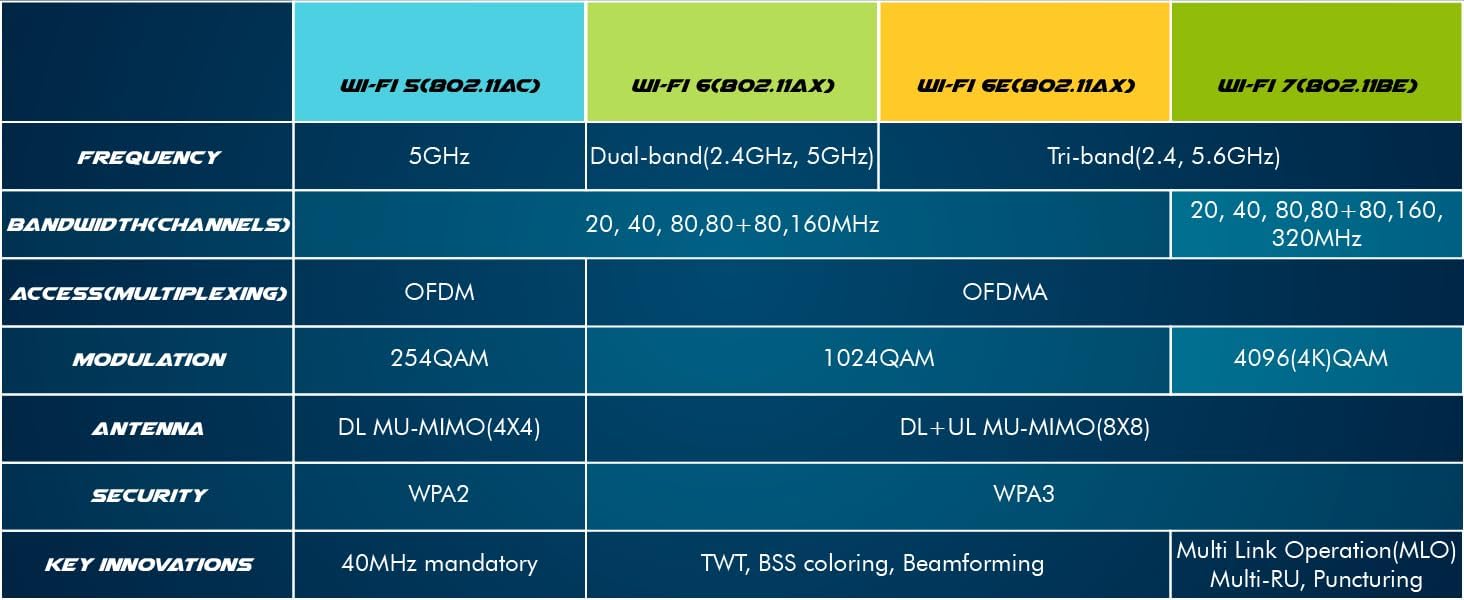

Everyday connections: Add internal wireless networking for a notebook or a suitably equipped desktop. The radio supports Wi-Fi 4/5/6/6E and 2.4, 5 and 6 GHz. Two spatial streams and 160 MHz channels enable a maximum 2.4 Gbps link with suitable network equipment. Signal quality, congestion and the internet connection limit real transfer speed.

Operating systems: Windows 10 and Windows 11 64-bit and Linux are supported with suitable drivers. On Windows, 6 GHz requires Windows 11, current Wi-Fi drivers, a Wi-Fi 6E or newer router and OEM/regulatory enablement. Linux Wi-Fi support starts at kernel 5.10 and needs firmware. Bluetooth 5.4 feature availability depends on OS, drivers and the paired device.

Check antenna connections: Match both MHF4-style antenna leads to the module. Two suitable antennas are needed for 2x2 operation; 6 GHz use also requires suitable antenna support. Existing antenna fit and band support must be checked separately.

Desktop setup: An expansion-slot installation requires an M.2-to-PCIe adapter with antennas. For Bluetooth, connect the adapter USB cable to an available motherboard USB header. An onboard socket with the required connections can accept the module directly.

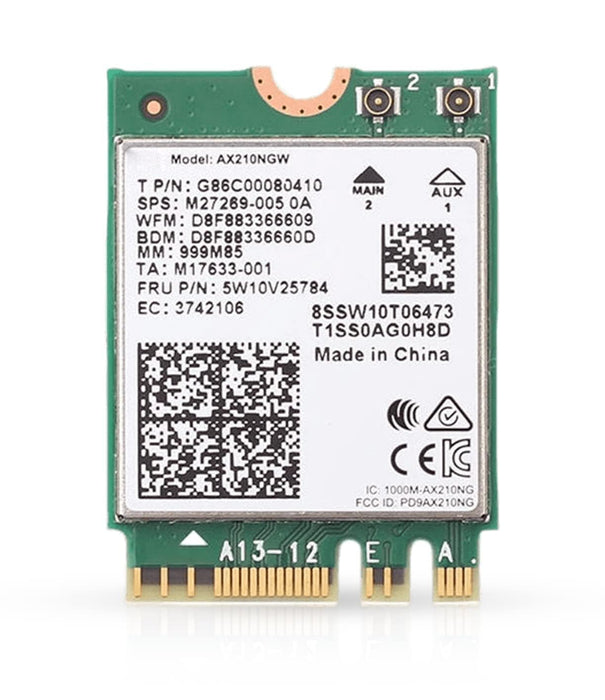

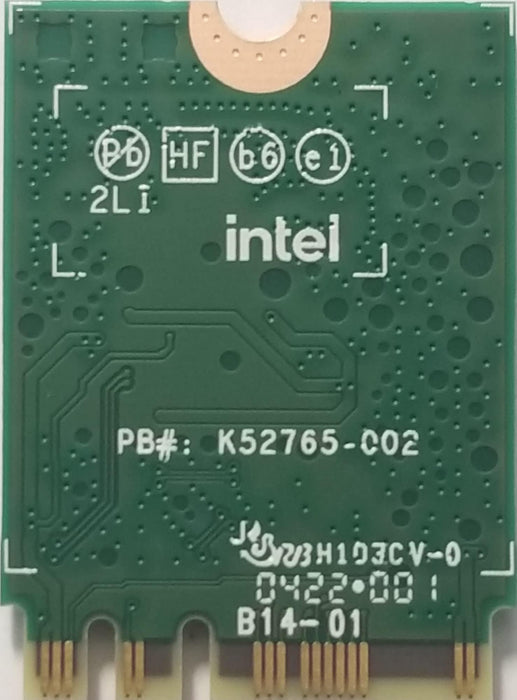

Module details: AX210NGW; M.2 2230 Key A+E; 22 x 30 x 2.4 mm; 2x2; 160 MHz; a/b/g/n/ac/ax; PCIe Wi-Fi; USB Bluetooth; MU-MIMO; OFDMA; WPA3; No vPro. Fits MHF4-style antenna leads.

In the package: One network card in generic non-retail packaging. ANTENNAS, SCREW, DESKTOP ADAPTER AND USB CABLE ARE NOT INCLUDED.

Wi-Fi 6E Card for Intel AX210 | M.2 2230 PCIe/USB | 2.4 Gbps | No vPro
By: HighZer0 Electronics
